Descriere
STABILITATE ȘI SPAȚIU LIBER

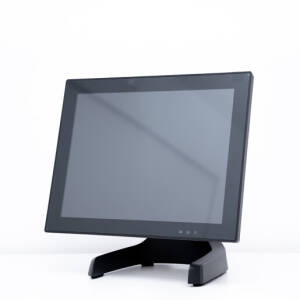

Seria N-250 are un management sporit al spațiului, permițând un aspect mai curat.

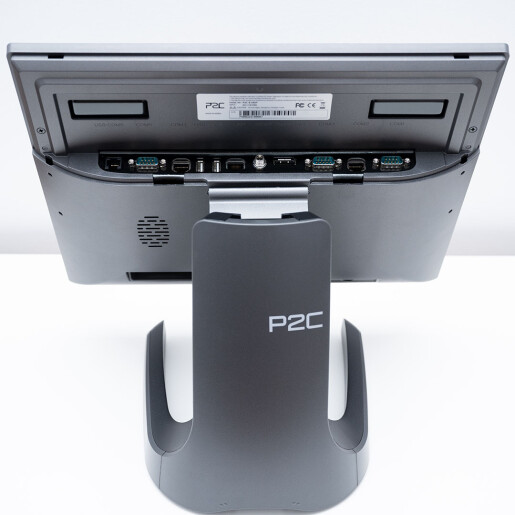

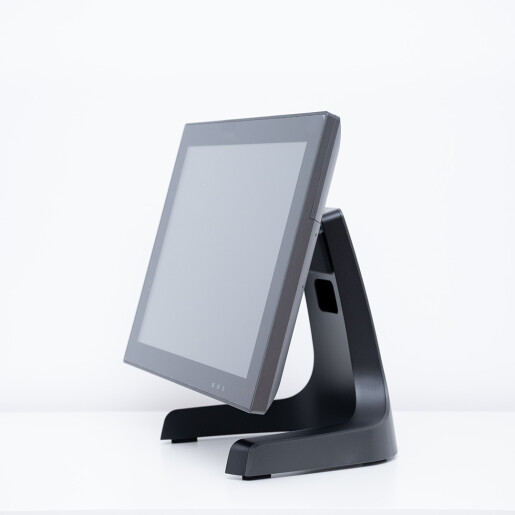

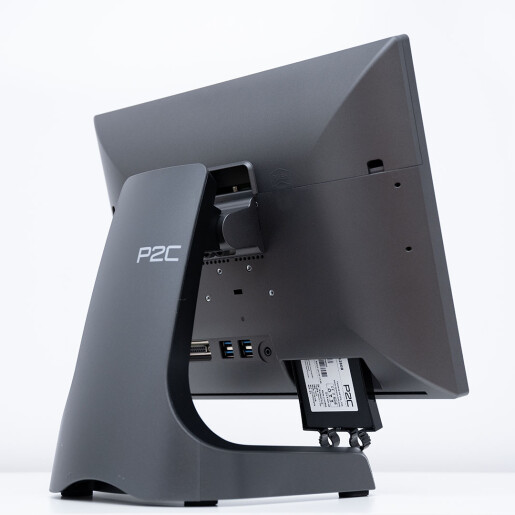

Suportul curbat oferă stabilitate in acelasi timp faciliteaza conectarea cu usurinta a dispozitivelor periferice cum ar fi imprimante, aparate de plată și scanere, să fie introduse chiar mai jos in ecranul principal pentru un confort sporit de operare.

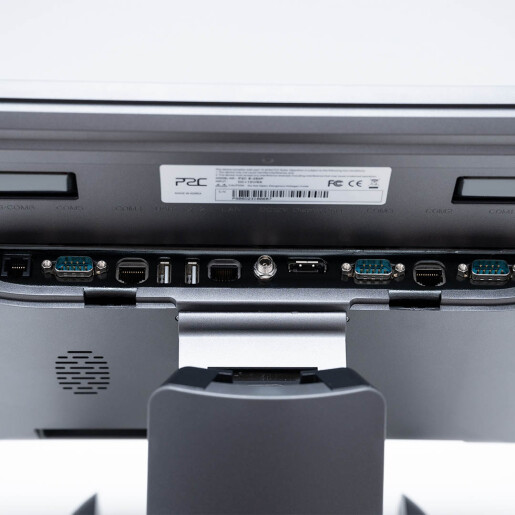

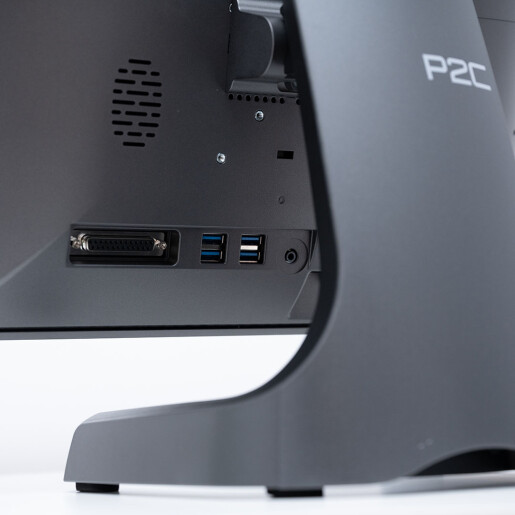

Interfete I/O superioare – inferioare

Modelul N-250 vine echipat cu un processor Intel® de înaltă performanță model N97, 16GB memorie RAM si un spatiu de stocare 128GB SSD.

Caracteristici tehnice sistem POS All in One P2C-N250 :
Sistem:
Processor: Intel® Processor N97, up to 3.60 GHz (Fanless)
Chipset / BIOS: Intel® Alder Lake-N SoC / AMI UEFI
Storage: 2.5″ SATA III SSD 128GB
Memory: 16GB SO-DIMM DDR4 3200MHz x 1
Graphics: Intel® UHD Graphics
Multi Monitor; 3 (# of Displays Supported) – up to 3 monitors (optional)
Expansion Slot; 1 x m.2 NVMe 1 x m.2 WiFi & Bluetooth (optional)
Optional sistem operare: Windows 11 IoT Enterprise LTSC 2024
Display:
Primary Display Type: 15″ LED Backlight (1024 x 768 Resolution)
Touchscreen capacitiv PCAP 10 Point Multi-touch: I/O Interfaces

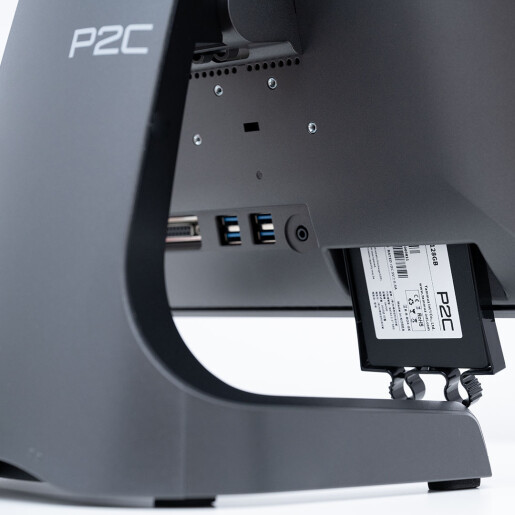

Porturi USB : 2 x USB 2.0 (Rear Top x 2), 1 x USB 2.0 (RJ11), 4 x USB 3.0 (Rear Bottom x 4)
6 porturi seriale : 3 porturi CANON DB9, 2 porturi RJ50 , 1 port RJ11)
Audio : 1 x Audio-out / 3.5mm
Secondary Display:
1 x DisplayPort (included 1 x USB 2.0 / Power Delivery +12V) *Can be used for HDMI and Standard DVI, VGA monitor by passive cable.
LAN: 1 x RJ45 (Base-T 10/100/1000 Ethernet)
Speaker (optional): 3W x 1
Peripheral Options

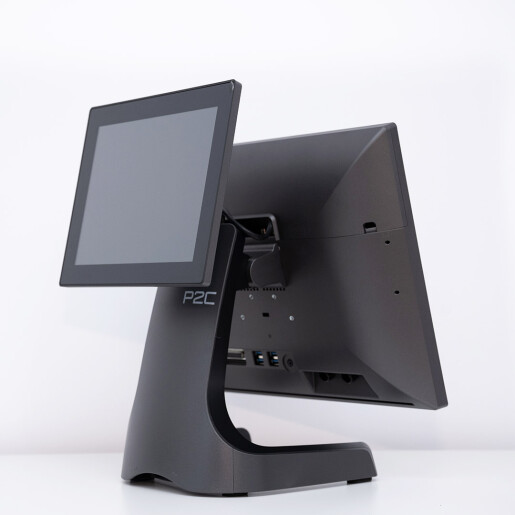

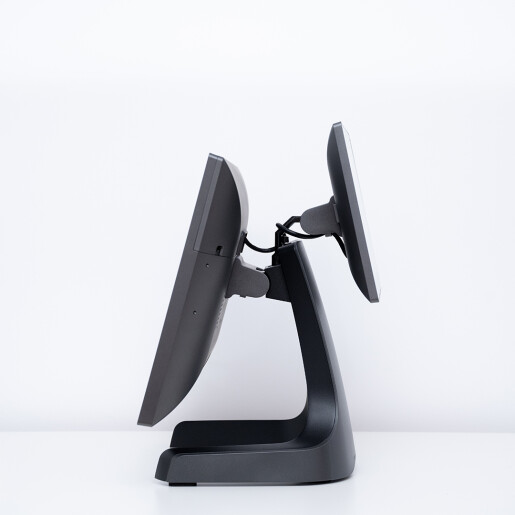

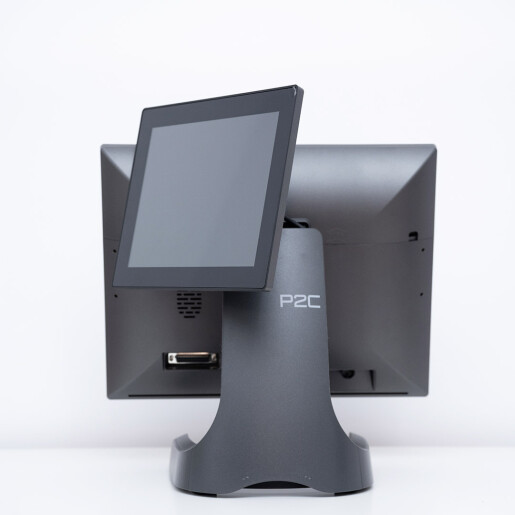

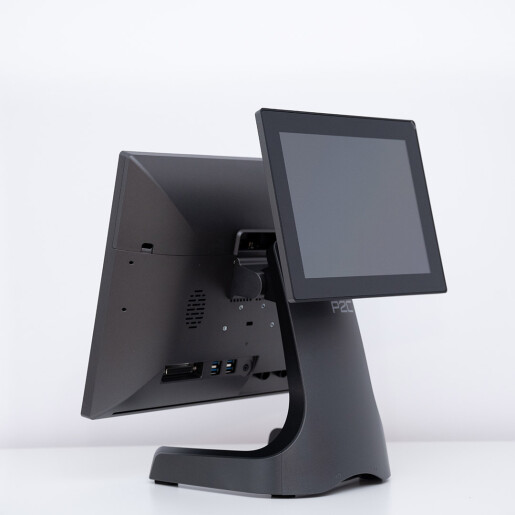

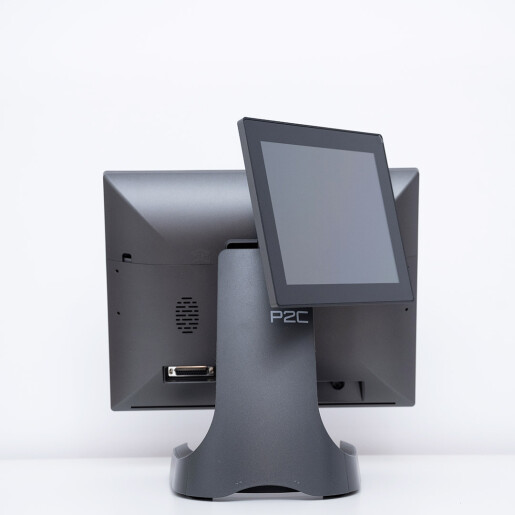

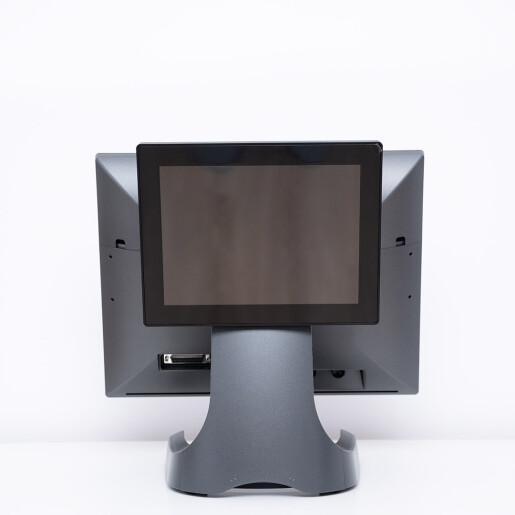

Secondary Display:
• LCD Type: 9.7″ or 15″ LCD (USB Port x 1)
• Touch Monitor: 9.7″ or 15″ LCD with Capacitive Touch (USB Port x 1) – by single cable(no power & USB cable)
• Standard Monitor: supported standard DP, HDMI, DVI, VGA monitor by change monitor cable)
• Standard and Powered DP MST Hub: supported standard or powered(customized) DP MST Hub.

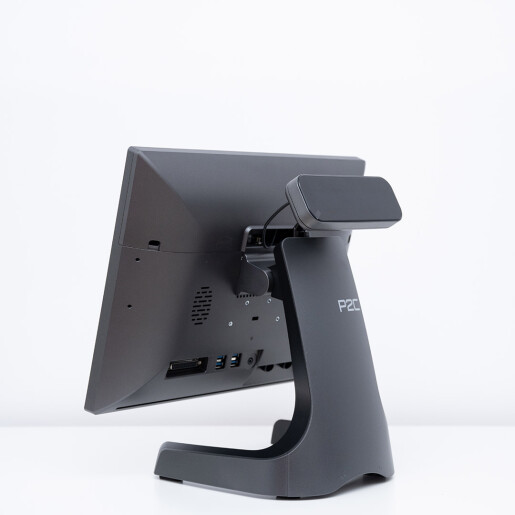

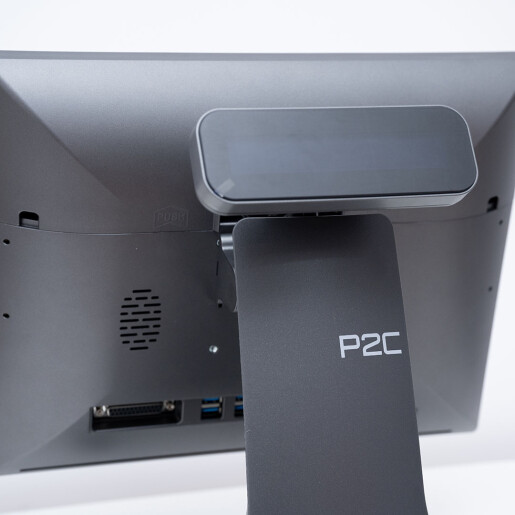

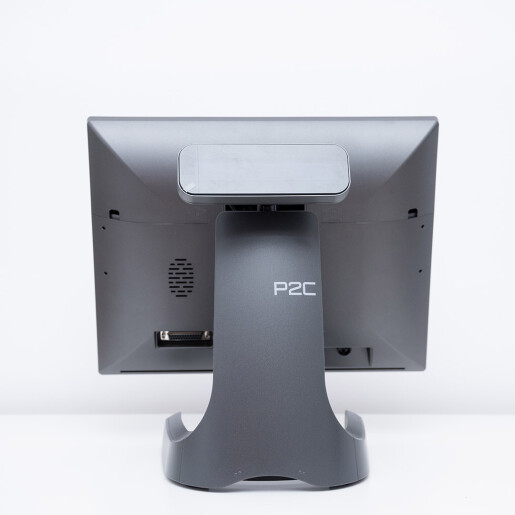

Customer Display (CDP):
•FSTN LCD Type (20 columns x 2 lines)

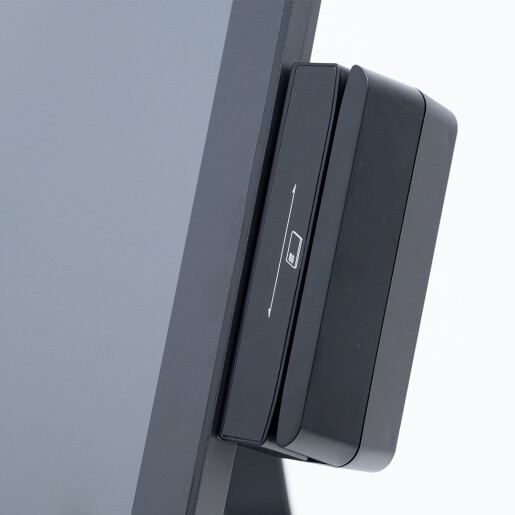

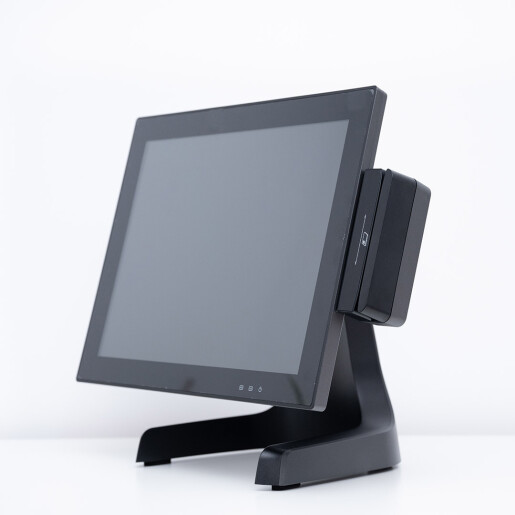

•Card Reader (MSR / SCR)
•Smart Card Reader: ISO/IEC7816 EMV Level 1 / Magnetic Stripe Reader: ISO 7811 ID-1 All tracks *Interface: USB(HID) and RS232C(COM6)
•Dallas Reader
•Dallas Reader(i-button): 6 characters / prefix and suffix *Interface: USB(HID) and RS232C(COM6)
Physical Dimension:

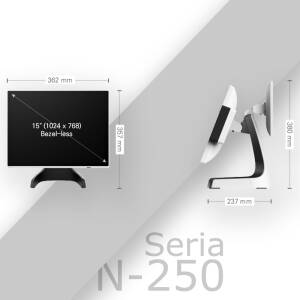

Dimension (W x D x H): 362 x 237 x 357 (mm) / 14.2 x 9.3 x 14.0 (inch)
Weight: 4.5 (Kg) / 9.9 (lb)
Environment:
Power Supply: DC 12V/5A (AC 100V~240V, 60W)
Temperature: Operating Temp : 0~40℃ / Storage Temp : -20~60℃ / Humidity : 10% to 90%
Certifications: CE, FCC, KC
